Oil coolers
CCS Oil Coolers is specialized in industrial oil coolers.
The coolers consist of different models, available with hydraulic or 400VAC driven fans.
The smaller models are also available with a 12V / 24V fan, suitable for mobile applications.
We also supply other oil coolers. If you have an original number, we can offer you a replacement cooler or possibly an alternative.
If desired, we can also supply coolers that meet your special requirements. Think of an existing cooler that is adapted to your needs or even a fully engineered cooler for your application.
If you are looking for a cooler for the offshore industry, then there is the possibility to provide the coolers with a special protective coating.

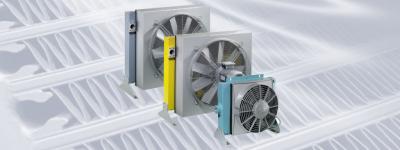

Oil Cooler with AC Motor (400V)
AKG-Line A (standard)
FEATURES OF THE AKG-Line A
- AC-motor 400 volt powered fan.
- Can be exposed to operating pressures of up to 26 bar or 17 bar, depending on model.
- High-Performance Aluminum "bar and plate" cooling assemblies.
- The heat is transferred from the cooling medium to the ambient air.
- These coolers can be used universallyfor hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
- For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50% of antifreeze and anticorrosive additives [other media available at request].
- Noise-optimized models available [low-noise series].
AKG-Line AR (Dusty environment)
FEATURES OF THE AKG-Line AR
- The coolers are equipped with anti-clogging fins
- 400 volt motor powered fan.
- Can be exposed to operating pressures of up to 26 bar or 17 bar, depending on model
- High-Performance cooling assemblies
- The heat is transferred from the medium to be cooled to the ambient air
- Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits
- For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50 per cent of antifreeze and anticorrosive additives [other media available]
- Noise-optimized models available [low-noise series]
AKG-Line AY (with bypass)
FEATURES OF THE AKG-Line AY
- Oilcooler with BYPASS
- AC-motor 400 volt powered fan.
- Can be exposed to operating pressures of up to 26 bar or 17 bar, depending on model.
- High-Performance Aluminum cooling assemblies.
- The heat is transferred from the medium to the ambient air.
- Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
- For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50 % of antifreeze and anticorrosive additives [other media available at request].
- Noise-optimized models available [low-noise series].
AKG-Line AP (+hydropump)
FEATURES OF THE AKG-Line AP
- 400 volt motor powered fan and hydro pump.
- The heat is transferred from the medium to be cooled to the ambient air.
- Cooler can be universally used in hydraulic oil, transmission oil, engine oil and lubricating oil
- For the cooling of HLP mineral oil to DIN 51524 and 100 cSt [other media and viscosity available at request]
- Ambient temperature from -20 C up to +80 C
- Max. oil temperature 80 C
- Pump rated suction pressure 0,7 – 2 bar [0,5 bar when starting]
- Largest and most comprehensive series of industrial coolers.
- Filter optional = 20m filter unit
- Filter bypass 2 bar.
ATEX Oil cooler AEX series
Features of the ATEX oil cooler AEX series:
- Cooler is equipped with an anti static fan.
- Fan motor is provided with an ATEX-certification, depending on required classe.
- High-Performance Aluminum cooling assemblies.
- Can be exposed op to operating pressures of up to 26 bar or 17 bar, depending on model.
AKG-Line T (standard)
FEATURES:
- High efficiency cooling system made of Aluminium.
- High performance and working pressure - even for heavy duty hydraulic and lubrication applications.
- Maximum working pressure: T1 - T8: 26 bar / T 9 - T11: 10 bar.
- Offering high flexibility for usage with transmission, engine, hydraulic and lubrication oils.
- May be also used as off-line coolers.
- Cooling systems can be fitted with 12/24 V DC, 3 Phase or hydraulic motors.

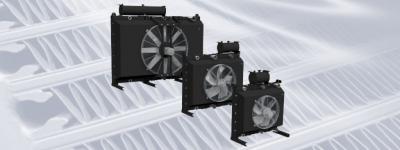

Oil Cooler with Hydraulic Motor
AKG-Line H (standard)
FEATURES OF THE AKG-Line H
- Can be exposed to operating pressures of up to 26 bar or 17 bar, depending on model.
- High-Performance cooling assemblies.
- The heat is transferred from the medium to the ambient air.
- Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
- For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50%of antifreeze and anticorrosive additives [other media available at request].
- Hydraulic motor powered fan.
AKG-Line HR (smooth fin)
FEATURES OF THE AKG-Line HR
- The coolers are equipped with anti-clogging fins
- Hydraulische motor powered fan.
- Can be exposed to operating pressures of up to 26 bar or 17 bar, depending on model
- High-Performance cooling assemblies
- The heat is transferred from the medium to be cooled to the ambient air
- Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits
- For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50 per cent of antifreeze and anticorrosive additives [other media available]
AKG-Line HY (with bypass)
FEATURES OF THE AKG-Line HY
- Oilcooler with BYPASS
- AC-motor Hydraulic motor powered fan.
- Can be exposed to operating pressures of up to 26 bar or 17 bar, depending on model.
- High-Performance Aluminum cooling assemblies.
- The heat is transferred from the medium to the ambient air.
- Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
- For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50% of antifreeze and anticorrosive additives [other media available at request].
Oil Cooler with DC Motor (12V-24V)
AKG-Line D (standard)
FEATURES OF THE AKG-Line D
- 12 / 24 Volt motor powered fan.
- These coolers are equipped with connections on the side.
- High-Performance cooling assemblies.
- The heat is transferred from the medium to the ambient air.
- Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
- For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50% of antifreeze and anticorrosive additives [other media available at request].
- Can be exposed to operating pressures of up to 26 bar.
AKG-Line DY (with bypass)
FEATURES OF THE AKG-Line DY
- Oil cooler with BYPASS.
- These coolers are equipped with connections on the side.
- 12 / 24 Volt motor powered fan.
- High-Performance cooling assemblies.
- The heat is transferred from the medium to the ambient air.
- Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
- For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50% of antifreeze and anticorrosive additives [other media available].
- Can be exposed to operating pressures of up to 26 bar.
AKG-Line D + AM
FEATURES OF THE AKG-Line D+AM
- 12 / 24 Volt motor powered fan.
- coolers with the connections on the fan side.
- High-Performance cooling assemblies.
- The heat is transferred from the medium to the ambient air.
- Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
- For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50% of antifreeze and anticorrosive additives [other media available at request].
- Can be exposed to operating pressures of up to 26 bar.
AKG-Line DY + AM (with bypass)
FEATURES OF THE AKG-Line DY+AM
- Oil cooler with BYPASS.
- coolers with the connections on the fan side.
- 12 / 24 Volt motor powered fan.
- High-Performance cooling assemblies.
- The heat is transferred from the medium to the ambient air.
- Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
- For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50% of antifreeze and anticorrosive additives [other media available].
- Can be exposed to operating pressures of up to 26 bar.
AKG-Line TL (standard)
Features of the AKG-TL serie:
- Cooling systems are made from Aluminium.
- Fully tried and tested for arduous working conditions.
- Ideal for mobile machines.
- maximun working pressure 14 bar.
- Offering a high flexibility for use in transmission, hydraulic, engine and lubrication oils.
- Cooling systems can be fittid with 12 / 24 volt DC and 3 Phase motors.
Ölkühler ATEX mit Drehstrommotor
Offshore
