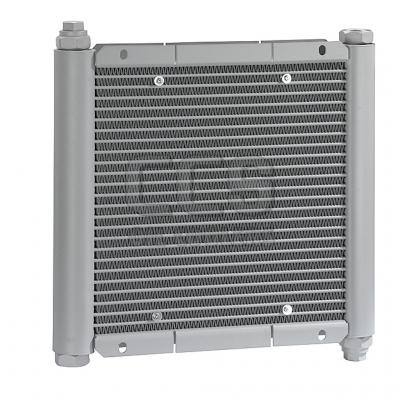

AKG-Line TL (standard)

Features of the AKG-TL serie:

  • Cooling systems are made from Aluminium.
  • Fully tried and tested for arduous working conditions.
  • Ideal for mobile machines.
  • maximun working pressure 14 bar.
  • Offering a high flexibility for use in transmission, hydraulic, engine and lubrication oils.
  • Cooling systems can be fittid with 12 / 24 volt DC and 3 Phase motors.

PDF datasheet

Technical Data

Model Size Order Number Fan Speed (rpm) Motor Voltage (V) Power Consumption (kW) Working Pressure (bar)
TL1 5741.201.0000
5741.202.0000
4780
4770
12
24
0.04
0.04
14
14
TL2 5742.201.0000
5742.202.0000
5742.221.0000
5742.222.0000
5742.203.0000
4250
4350
4250
4350
1500
12
24
12
24
230/400
0.08
0.09
0.08
0.09
0.04
14
14
14
14
14
TL3 5743.201.0000
5743.202.0000
5743.221.0000
5743.222.0000
5743.203.0000
3400
3260
3400
3260
3000
12
24
12
24
230/400
0.09
0.09
0.09
0.09
0.25
14
14
14
14
14
TL4 5744.201.0000
5744.202.0000
5744.221.0000
5744.222.0000
5744.203.0000
3280
3260
3280
3260
3000
12
24
12
24
230/400
0.12
0.12
0.12
0.12
0.25
14
14
14
14
14
TL5 5745.201.0000
5745.202.0000
5745.221.0000
5745.222.0000
5745.203.0000
2600
2620
2600
2620
1500
12
24
12
24
230/400
0.10
0.10
0.10
0.10
0.12
14
14
14
14
14
TL6 5746.201.0000
5746.202.0000
5746.221.0000
5746.222.0000
5746.203.0000
3280
3260
3280
3260
3000
12
24
12
24
230/400
2x 0.12
2x 0.12
2x 0.12
2x 0.12
0.37
14
14
14
14
14

Dimensions

Model Size A B C N max. O
TL1 150 154   145,5 G 1/2
TL2 200 203   147 G 3/4
TL3 250 252   147 G 3/4
TL4 300 301   147 G 3/4
TL5 350 350   147 G 3/4
TL6 600 301   147 G 3/4

Cooler Dimensions TL1 to TL6


Specific Heat Rejection TL1 -TL6

Description Value
Volts 12/24
