AKG-Line AR (Dusty environment)
AKG-Line AR (Dusty environment)

FEATURES OF THE AKG-Line AR

  • The coolers are equipped with anti-clogging fins
  • 400 volt motor powered fan.
  • Can be exposed to operating pressures of up to 26 bar or 17 bar, depending on model
  • High-Performance cooling assemblies
  • The heat is transferred from the medium to be cooled to the ambient air
  • Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits
  • For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50 per cent of antifreeze and anticorrosive additives [other media available]
  • Noise-optimized models available [low-noise series]

PDF datasheet
Datasheet AKG-Line AR Oil cooler (dusty environment) 400 Volt fan

Technical Data

Model size Voltage Motor power Nominal speed Maximum working pressure
AR12 400 0.37 3000 26
AR16 400 0.37 3000 26
AR25 400 0.55 1500 26
AR35 400 0.75 1500 26
AR45 400 0.75 1500 26
AR60 400 0.75 1500 26
AR75 400 0.75 1500 26
AR105 400 2.2 1500 26
AR120 400 2.2 1500 26
AR135 400 2.2 1500 17
AR225 400/690 5.5 1500 17
AR330 400/690 11 1500 17

Dimension

Model size A B C (approx.) D E F G H J K L M
AR12 391 450 410 (circa) 324 107 40 G1 392 180 220 M8 ø14 .
AR16 402 440 440 (circa) 328 123 49 G1 382 240 280 M8 ø14 .
AR25 496 600 500 (circa) 427 105 36 G1¼ 542 180 220 M8 ø14 .
AR35 601 700 510 (circa) 532 104 36 G1¼ 638 180 220 M8 ø14 .
AR45 613 690 540 (circa) 538 123 48 G1¼ 632 240 280 M10 ø14 .
AR60 666 790 515 (circa) 583 123 43 G1¼ 732 240 280 M10 ø14 .
AR75 791 940 625 (circa) 668 205 83 G1½ 882 340 380 M10 ø14 .
AR105 884 990 670 (circa) 715 255 85 SAE 2" 932 340 380 M10 ø14 .
AR120 992 1040 650 (circa) 820 255 82 SAE 2" 982 340 380 M10 ø14 .
AR135 989 1090 680 (circa) 806 261 79 SAE 2" 1032 410 450 M12 ø14 .
AR225 1220 1240 810 (circa) 1001 296 77 SAE 3" 1182 410 450 M12 ø14 .
AR330 1524 1340 885 (circa) 1306 296 78 SAE 3" 1282 410 450 M12 ø14 .

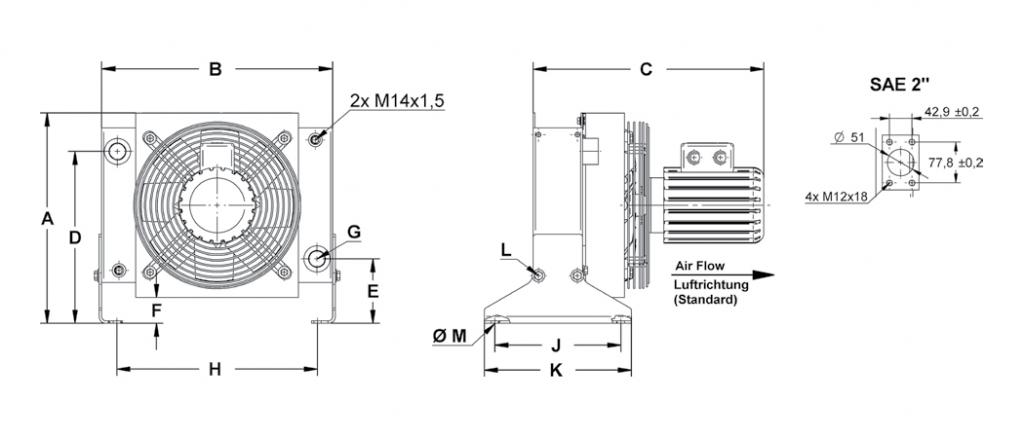

Cooler Dimensions AR12 oil cooler with anti-clogging fin systemto ar105 oil cooler with anti-clogging fin system

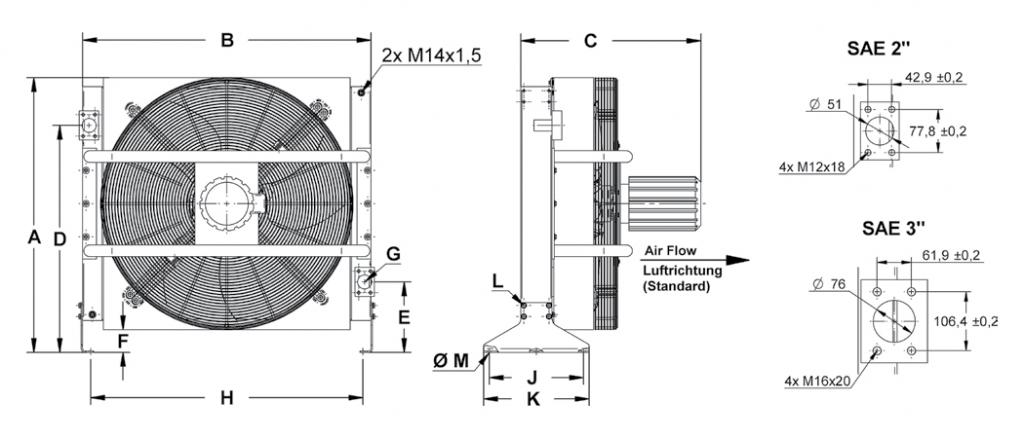

Cooler Dimensions AR120 oil cooler with anti-clogging fin systemto ar330 oil cooler with anti-clogging fin system

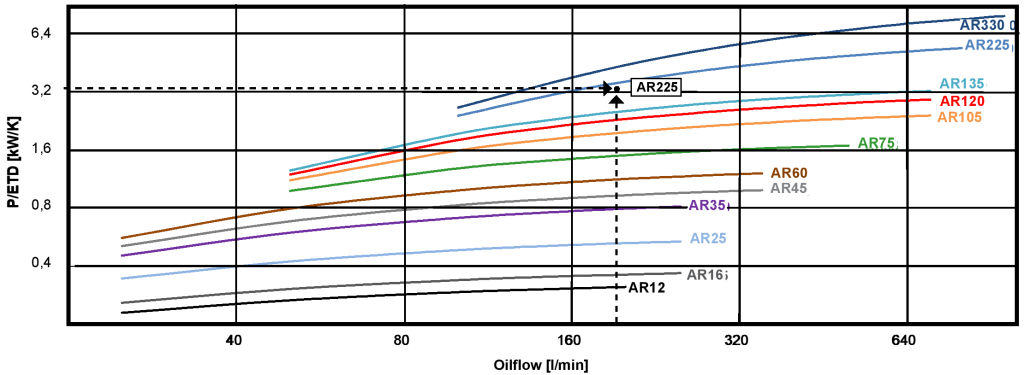

Specific Heat Rejection

Technical Data

Model size Voltage Motor power Nominal speed Maximum working pressure
AR12B 400 0.37 3000 26
AR16B 400 0.37 3000 26
AR25B 400 0.55 1500 26
AR35B 400 0.75 1500 26
AR45B 400 0.75 1500 26
AR60B 400 0.75 1500 26
AR75B 400 0.75 1500 26
AR105B 400 2.2 1500 26
AR120B 400 2.2 1500 26
AR135B 400 2.2 1500 17
AR225B 400/690 5.5 1500 17
AR330B 400/690 11 1500 17

Dimension

Model size A B C (approx.) D E F G H J K L M
AR12B 391 450 410 (circa) 324 107 40 G1 392 180 220 M8 ø14 .
AR16B 402 440 440 (circa) 328 123 49 G1 382 240 280 M8 ø14 .
AR25B 496 600 500 (circa) 427 105 36 G1¼ 542 180 220 M8 ø14 .
AR35B 601 700 510 (circa) 532 104 36 G1¼ 638 180 220 M8 ø14 .
AR45B 613 690 540 (circa) 538 123 48 G1¼ 632 240 280 M10 ø14 .
AR60B 666 790 515 (circa) 583 123 43 G1¼ 732 240 280 M10 ø14 .
AR75B 791 940 625 (circa) 668 205 83 G1½ 882 340 380 M10 ø14 .
AR105B 884 990 670 (circa) 715 255 85 SAE 2" 932 340 380 M10 ø14 .
AR120B 992 1040 650 (circa) 820 255 82 SAE 2" 982 340 380 M10 ø14 .
AR135B 989 1090 680 (circa) 806 261 79 SAE 2" 1032 410 450 M12 ø14 .
AR225B 1220 1240 810 (circa) 1001 296 77 SAE 3" 1182 410 450 M12 ø14 .
AR330B 1524 1340 885 (circa) 1306 296 78 SAE 3" 1282 410 450 M12 ø14 .

Cooler Dimensions AR12B oil cooler with anti-clogging fin systemto ar105b oil cooler with anti-clogging fin system

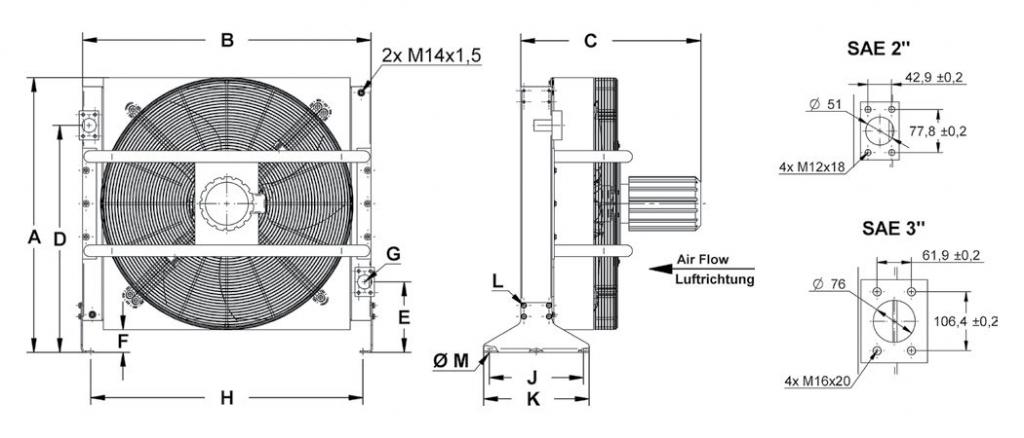

Cooler Dimensions AR120B oil cooler with anti-clogging fin systemto ar330b oil cooler with anti-clogging fin system

Specific Heat Rejection

Technical Data

Model size Voltage Motor power Nominal speed Maximum working pressure
ARL12 400 0.37 1500 26
ARL16 400 0.37 1500 26
ARL25 400 0.37 1000 26
ARL35 400 0.37 1000 26
ARL45 400 0.37 1000 26
ARL60 400 0.37 1000 26
ARL75 400 0.37 1000 26
ARL105 400 1.1 1000 26
ARL120 400 1.1 1000 26
ARL135 400 1.1 1000 17
ARL225 400/690 3 1000 17
ARL330 400/690 7.5 1000 17

Dimension

Model size A B C (approx.) D E F G H J K L M
ARL12 391 450 410 (circa) 324 107 40 G1 392 180 220 M8 ø14 .
ARL16 402 440 440 (circa) 328 123 49 G1 382 240 280 M8 ø14 .
ARL25 496 600 500 (circa) 427 105 36 G1¼ 542 180 220 M8 ø14 .
ARL35 601 700 510 (circa) 532 104 36 G1¼ 638 180 220 M8 ø14 .
ARL45 613 690 540 (circa) 538 123 48 G1¼ 632 240 280 M10 ø14 .
ARL60 666 790 515 (circa) 583 123 43 G1¼ 732 240 280 M10 ø14 .
ARL75 791 940 625 (circa) 668 205 83 G1½ 882 340 380 M10 ø14 .
ARL105 884 990 670 (circa) 715 255 85 SAE 2" 932 340 380 M10 ø14 .
ARL120 992 1040 650 (circa) 820 255 82 SAE 2" 982 340 380 M10 ø14 .
ARL135 989 1090 680 (circa) 806 261 79 SAE 2" 1032 410 450 M12 ø14 .
ARL225 1220 1240 810 (circa) 1001 296 77 SAE 3" 1182 410 450 M12 ø14 .
ARL330 1524 1340 885 (circa) 1306 296 78 SAE 3" 1282 410 450 M12 ø14 .

Cooler Dimensions ARL12 oil cooler with anti-clogging fin systemto arl105 oil cooler with anti-clogging fin system

Cooler Dimensions ARL120 oil cooler with anti-clogging fin systemto arl330 oil cooler with anti-clogging fin system

Specific Heat Rejection

Technical Data

Model size Voltage Motor power Nominal speed Maximum working pressure
ARL12B 400 0.37 1500 26
ARL16B 400 0.37 1500 26
ARL25B 400 0.37 1000 26
ARL35B 400 0.37 1000 26
ARL45B 400 0.37 1000 26
ARL60B 400 0.37 1000 26
ARL75B 400 0.37 1000 26
ARL105B 400 1.1 1000 26
ARL120B 400 1.1 1000 26
ARL135B 400 1.1 1000 17
ARL225B 400/690 3 1000 17
ARL330B 400/690 7.5 1000 17

Dimension

Model size A B C (approx.) D E F G H J K L M
ARL12B 391 450 410 (circa) 324 107 40 G1 392 180 220 M8 ø14 .
ARL16B 402 440 440 (circa) 328 123 49 G1 382 240 280 M8 ø14 .
ARL25B 496 600 500 (circa) 427 105 36 G1¼ 542 180 220 M8 ø14 .
ARL35B 601 700 510 (circa) 532 104 36 G1¼ 638 180 220 M8 ø14 .
ARL45B 613 690 540 (circa) 538 123 48 G1¼ 632 240 280 M10 ø14 .
ARL60B 666 790 515 (circa) 583 123 43 G1¼ 732 240 280 M10 ø14 .
ARL75B 791 940 625 (circa) 668 205 83 G1½ 882 340 380 M10 ø14 .
ARL105B 884 990 670 (circa) 715 255 85 SAE 2" 932 340 380 M10 ø14 .
ARL120B 992 1040 650 (circa) 820 255 82 SAE 2" 982 340 380 M10 ø14 .
ARL135B 989 1090 680 (circa) 806 261 79 SAE 2" 1032 410 450 M12 ø14 .
ARL225B 1220 1240 810 (circa) 1001 296 77 SAE 3" 1182 410 450 M12 ø14 .
ARL330B 1524 1340 885 (circa) 1306 296 78 SAE 3" 1282 410 450 M12 ø14 .

Cooler Dimensions ARL12B oil cooler with anti-clogging fin systemto arl105b oil cooler with anti-clogging fin system

Cooler Dimensions ARL60B oil cooler with anti-clogging fin system

Cooler Dimensions ARL120B oil cooler with anti-clogging fin systemto arl330b oil cooler with anti-clogging fin system

Specific Heat Rejection
