H50 oil cooler AKG
AKG-Line H (standard)

FEATURES OF THE AKG-Line H

  • Can be exposed to operating pressures of up to 26 bar or 17 bar, depending on model.
  • High-Performance cooling assemblies.
  • The heat is transferred from the medium to the ambient air.
  • Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
  • For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50%of antifreeze and anticorrosive additives [other media available at request].
  • Hydraulic motor powered fan.

PDF datasheet
Datasheet AKG-Line H Oil cooler hydraulic fan

Technical Data H50 oil cooler AKG

Volume 5 liter
Maximum working pressure 26 bar (g)
Weight 35 kg
Fan ø 524 mm
Airflow Sucking
Noise level 80 dB

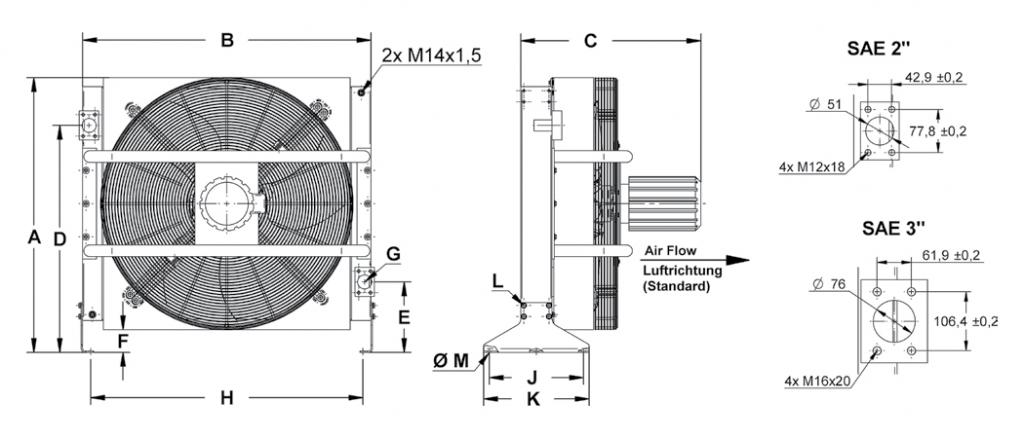

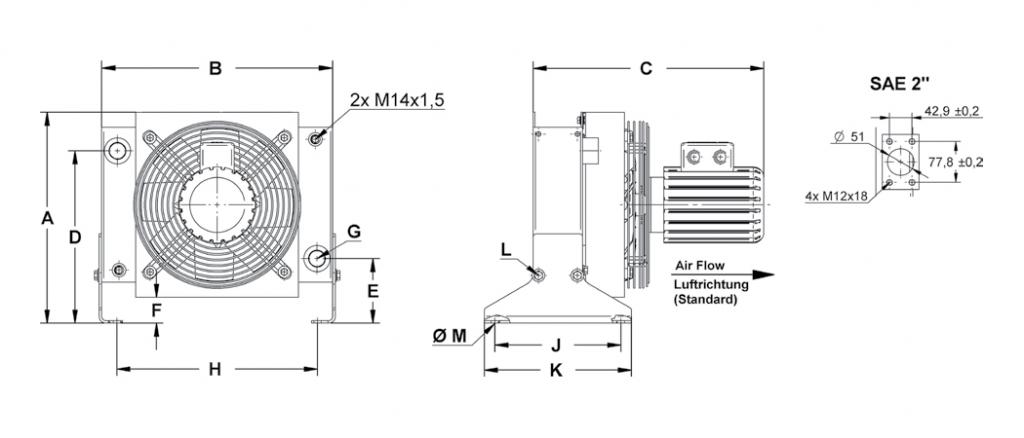

technical drawing H50 oil cooler AKG

Product codes H50 oil cooler AKG

  CCS no. AKG nr. (Old) AKG nr. (New)
H50 Complete 2045.140.0000 1964.004.X084 1100895800

Cooler 6010.110.0000 1963.004.1X84 1100626600
Foot 7810.010.0000 1963.001.7200 1400157400
Shroud 7410.030.0000 1963.004.4010 1500156000
Fan 7250.052.4500 8400.330.0524 1500390700
Fingerguard 7610.040.0000 8402.080.0000 1500417200
Motor 7060.011.3002 8407.470.0044 1500464900

Description Value
COOLER_TYPE Default
Airflow Zuigend
Low noise NO
Volume 5
Maximum working pressure 26
Weight 35
Motor size 11
minimum speed 1000
Max speed 3500
Nominal speed 1500
maximum motor pressure [bar] 250
Fan ø 524
Noise level 80
Environment Default
Connection Default
Manufacturer AKG
Voltage N.v.t.
