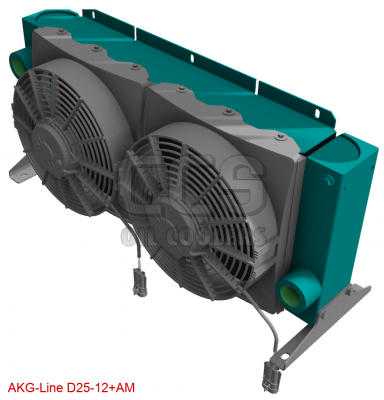

AKG-Line D + AM

FEATURES OF THE AKG-Line D+AM

  • 12 / 24 Volt motor powered fan.
  • coolers with the connections on the fan side.
  • High-Performance cooling assemblies.
  • The heat is transferred from the medium to the ambient air.
  • Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
  • For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50% of antifreeze and anticorrosive additives [other media available at request].
  • Can be exposed to operating pressures of up to 26 bar.

PDF datasheet
AKG-Line_DY_AM_Oil_cooler_with_12V_24V_motor_ENGLISCH_19.pdf

Technical Data D25+AM oil cooler 12V-DC AKG

Volume 5 liter
Maximum working pressure 26 bar (g)
Weight 22.5 kg
Voltage 12 Volt
Motor power 0.204 Kw
Airflow Sucking
Noise level 79 dB

technical drawing D25+AM oil cooler 12V-DC AKG

Product codes D25+AM oil cooler 12V-DC AKG

  CCS no. AKG nr. (Old) AKG nr. (New)
D25-12+AM Complete 2035.105.6000 1962.070.X084 1100975400

Cooler 6035.105.0000 1962.014.1X84 1100975300
Foot 7810.130.0000 1962.005.7200 1400157300
Motor bracket 1400157400
Fan 7250.028.0600 8407.304.0236 1500460800

Description Value
COOLER_TYPE Default
Airflow Zuigend
Low noise NO
Volume 5
Maximum working pressure 26
Weight 22.5
Voltage 12
Motor power 0.204
Ampere 17
Number fan 2
Air flow 3000
Noise level 79
Environment Default
Connection Front
Manufacturer AKG
