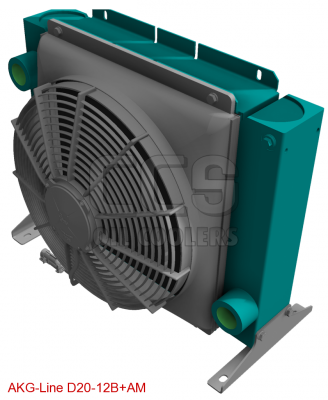

AKG-Line D + AM

FEATURES OF THE AKG-Line D+AM

  • 12 / 24 Volt motor powered fan.
  • coolers with the connections on the fan side.
  • High-Performance cooling assemblies.
  • The heat is transferred from the medium to the ambient air.
  • Cooler can be universally used in hydraulic oil, transmission oil, engine oil, lubricating oil and coolant circuits.
  • For the cooling of mineral oil, synthetic oil, biological oil as well as of HFA, HFB, HFC and HFD liquids and water with at least 50% of antifreeze and anticorrosive additives [other media available at request].
  • Can be exposed to operating pressures of up to 26 bar.

PDF datasheet
AKG-Line_DY_AM_Oil_cooler_with_12V_24V_motor_ENGLISCH_19.pdf

Technical Data D20+AM oil cooler 12V-DC blowing AKG

Volume 5.1 liter
Maximum working pressure 26 bar (g)
Weight 19.5 kg
Voltage 12 Volt
Motor power 0.348 Kw
Airflow Blowing
Noise level 81 dB

technical drawing D20+AM oil cooler 12V-DC blowing AKG

Product codes D20+AM oil cooler 12V-DC blowing AKG

  CCS no. AKG nr. (Old) AKG nr. (New)
D20-12B+AM Complete 2035.085.7000 1962.085.X084 0

Cooler 6035.085.0000 1962.013.1X84 1100975000
Foot 7810.130.0000 1962.005.7200 1400157300
Motor bracket 1400157400
Fan 7250.037.0800 8407.304.0280 1501173400

Description Value
COOLER_TYPE Default
Airflow Blazend
Low noise NO
Volume 5.1
Maximum working pressure 26
Weight 19.5
Voltage 12
Motor power 0.348
Ampere 29
Number fan 1
Air flow 2650
Noise level 81
Environment Default
Connection Front
